Individual & Overall Screened & Armored Thermocouple Cable
Applications
These cables are used with thermocouples for temperature measurements where hydrocarbon may be present.
Standards
IEC 60584-3; NF C 42-324

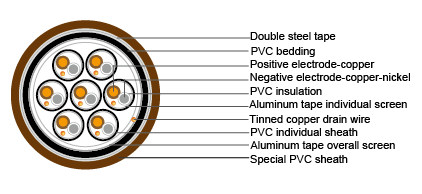

Construction
Conductor:
Metal according to thermocouple type
Insulation:
PVC
Individual screen:
Aluminum/polyester tape with tinned copper drain wire
Individual sheath:
PVC
Overall screen:
Aluminum/polyester tape with tinned copper drain wire
Inner sheath:
PVC
Armor:
Double steel tape
Sheath:
Special PVC. Color depends on thermocouple type
Properties
Flame retardance: NFC 32070 C2, IEC 60332-1-2
Operating voltage: 250V
Operating temperature: -20~60°C
Max. conductor temperature in service: 70°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| Conductor Size (mm sq) | No, of Pairs | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 0.5 solid | 3 | 14.6 | 16.8 | 370 |
| 0.5 solid | 7 | 19.1 | 22.0 | 590 |
| 0.5 solid | 12 | 23.9 | 27.5 | 865 |
| 0.5 solid | 19 | 28.8 | 33.0 | 1225 |
| 0.5 solid | 27 | 33.2 | 38.2 | 1700 |
